Mermaid Diagrams for Test Design

Write the diagram as a code block, and Testomat.io shows it as a picture. Add a Mermaid diagram to any test or suite description. Diagrams are most useful for big features with many states. Use a diagram to show a workflow, the branches of a scenario, or how parts of your product connect.

Add a diagram to a description

Section titled “Add a diagram to a description”
  1. Open the test or suite you want to document.
  2. Click Edit.
  3. Switch to the Markdown tab.
  4. Add a fenced code block that starts with ```mermaid.
  5. Write the diagram inside the block.
  6. Click Save.

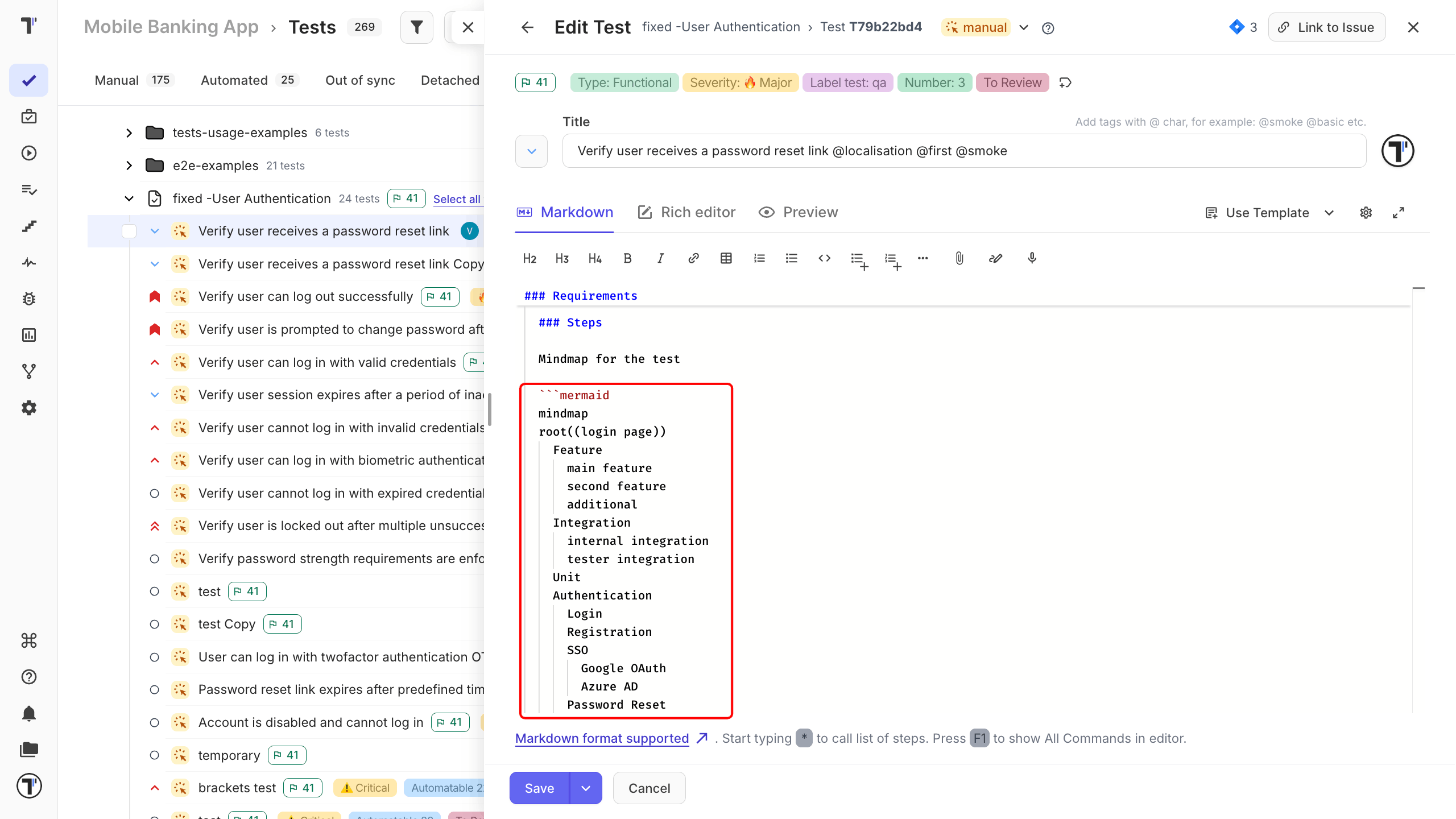

The Markdown tab of the test editor with a Mermaid flowchart block

The Preview tab shows the diagram before you save. After you save, the picture appears in the description instead of the code block.

A flowchart looks like this:

A checkout flow drawn as a diagram, branching into payment confirmed and payment declined

A mindmap suits a hierarchy - the areas of a project and what sits under them.

Download a diagram

Section titled “Download a diagram”

Each diagram has SVG and PNG buttons. Click one to download the picture and use it in a slide, a ticket, or a report outside Testomat.io.

Use a diagram when you need to show how things connect:

  • end-to-end user journeys,
  • how services work with each other,
  • which suites cover which features,
  • test data and its variants,
  • the steps that reproduce a bug.
